New Panels Plus Wall Panel Framing Station

Price based on configuration

Call for Pricing

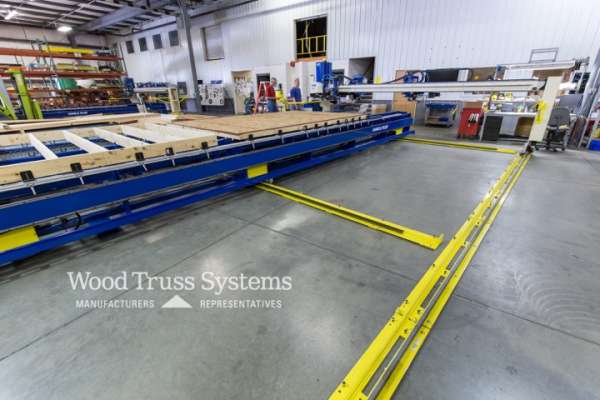

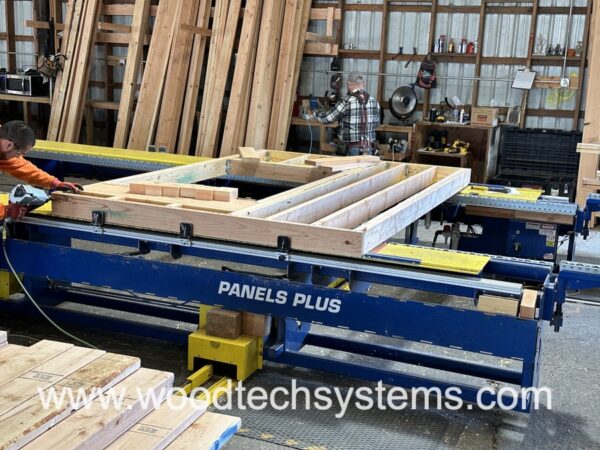

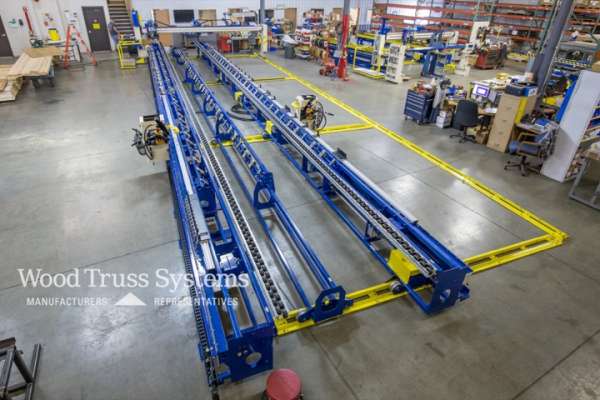

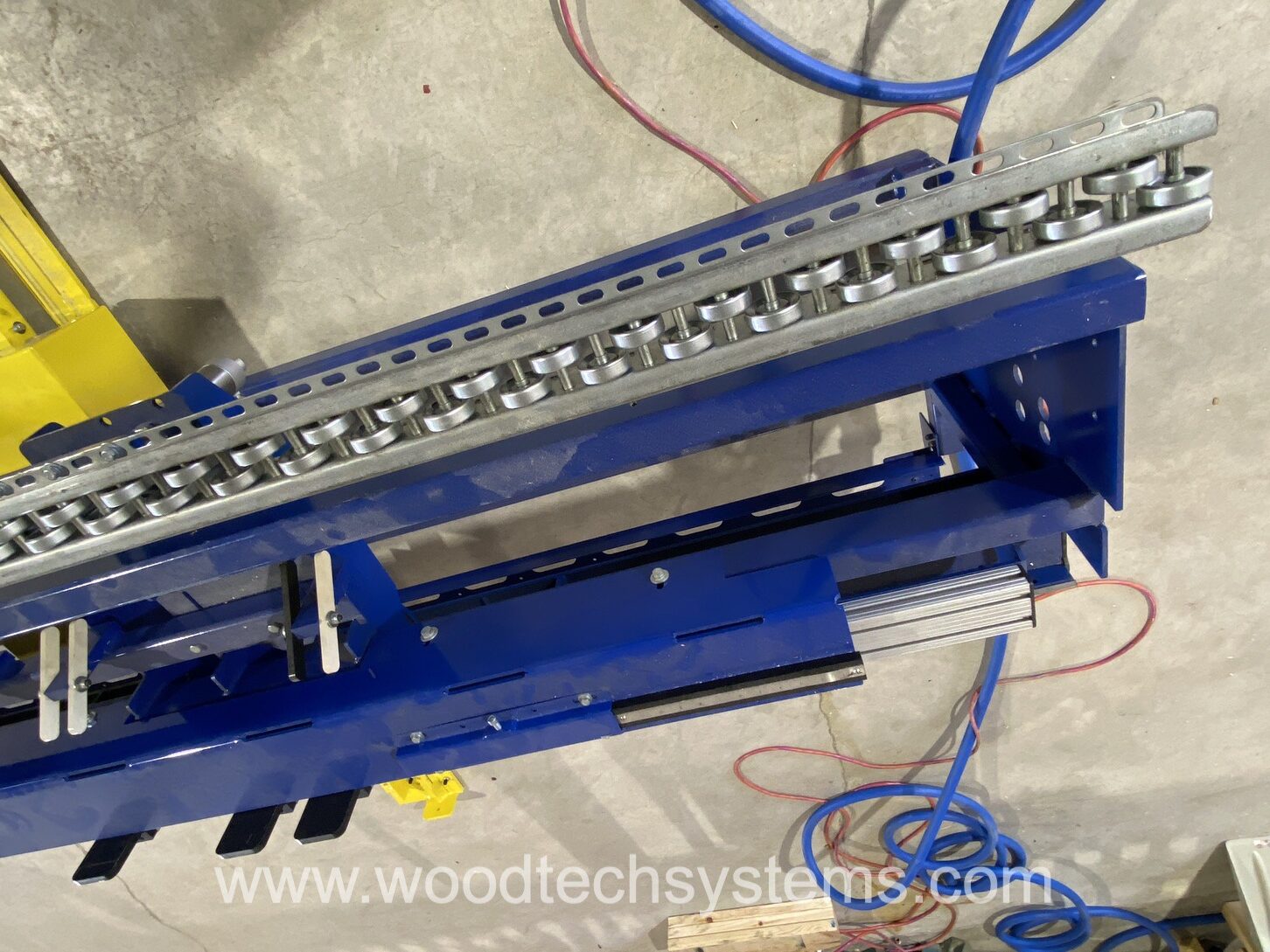

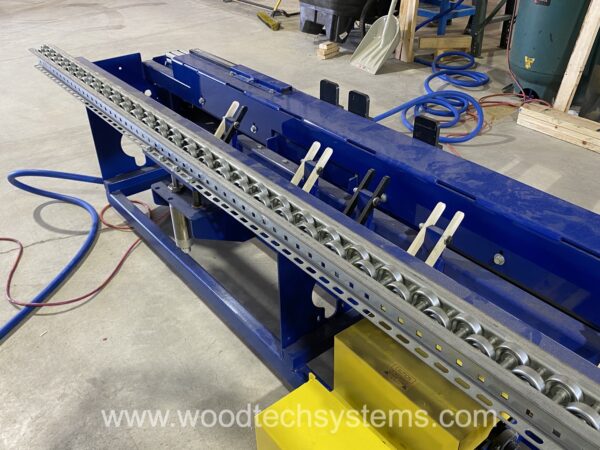

The Panels Plus framing table allows you to assemble a range of wall heights from 4′-6″ to 12′-4″, at an industry standard 16′ length (30 and 32 foot long working lengths are available) at a working height of 33 inches. This framer design includes controls at each end of table, squaring stops and pneumatic clamping for consistent wall panel quality. Frames 2×4″ up to 2×10″ walls, with color-coded, steel stud locators at 16 and 24 inches O.C. spacing. Includes pop-up skate wheels for easy transfer of completed wall frame. Framing table can be configured to receive wall framing light bars or with the optional wide support flange when used with laser projection, where stud locators are not necessary.

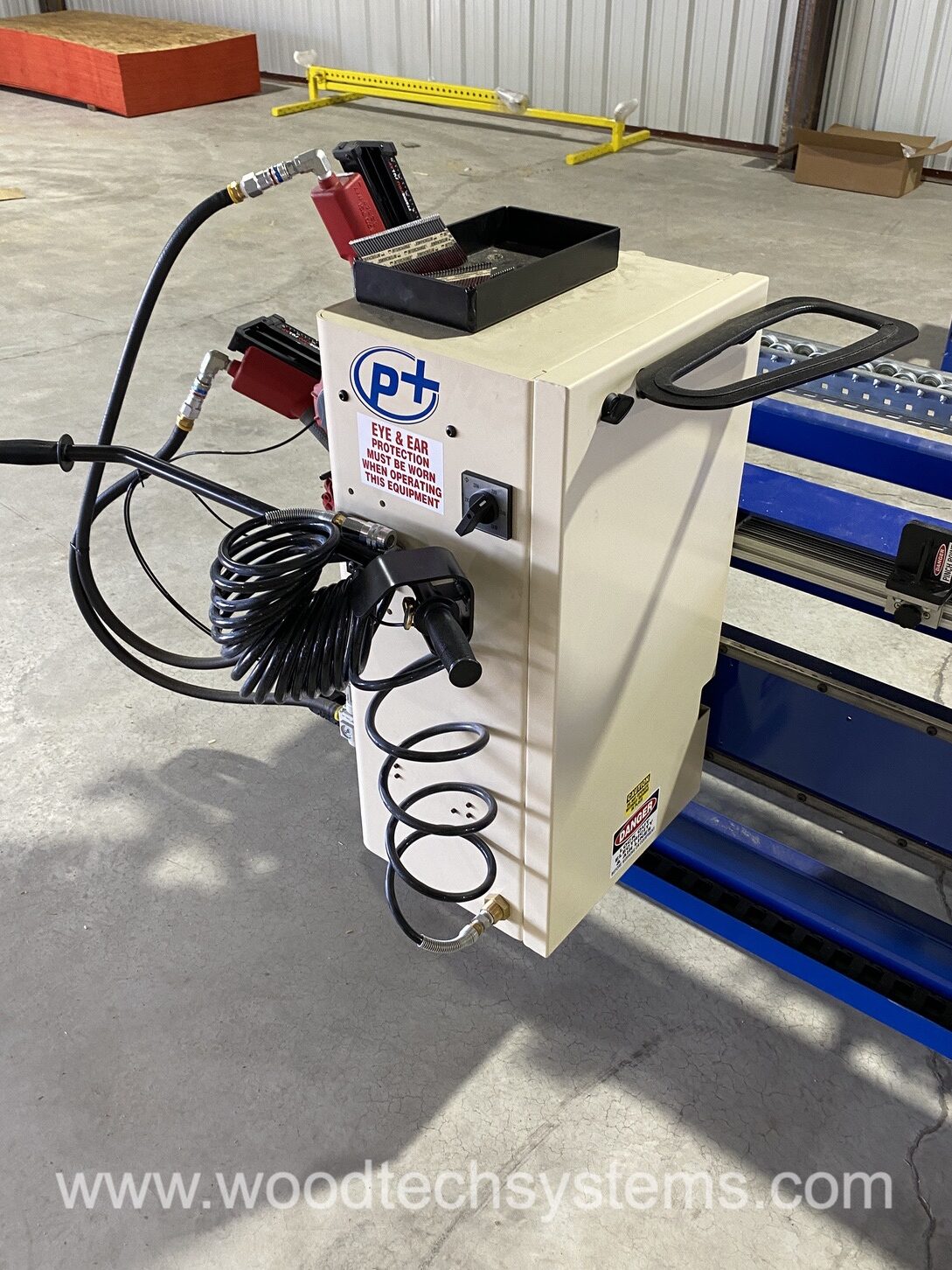

Other options include custom buildable wall heights, lengths and auto-indexing of optional 2 or 3 tool carriages. Sub-component tables, conveyors and panel lifts are also available to complete the configuration of your wall panel assembly line. Price includes factory installation and training. 120 PSI at 50 CFM air. 120 or 230 volt, 1 phase electrical.
