New Panels Plus Floor Framing Station

Price based on configuration
NEW
MN

New Panels Plus floor framing machine, supports the structural members creating floor sections from 2″ x 6″ LVL through 2″ x 10″ to 2″ x 12″ dimensional lumber, 20″ deep wood floor trusses or engineered wood / I-joists…

Condition: New
Location: MN

Call for Pricing

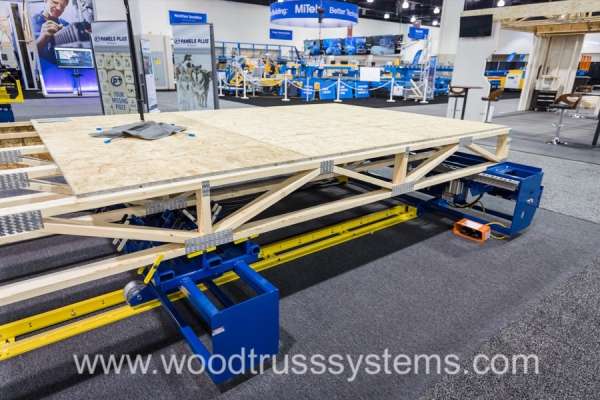

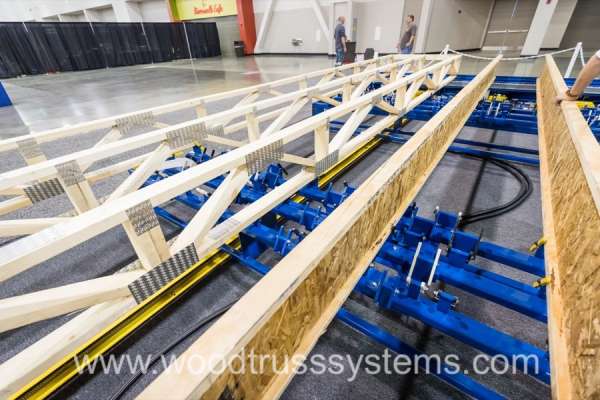

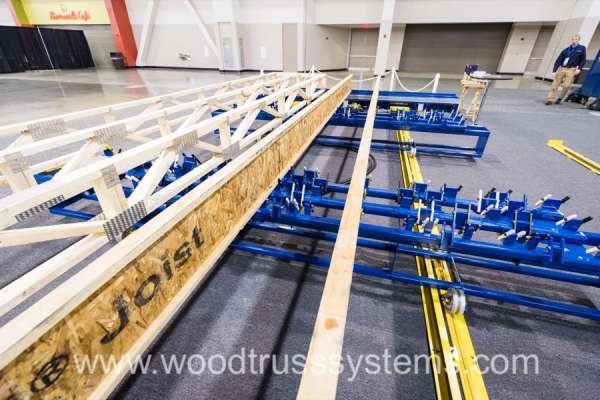

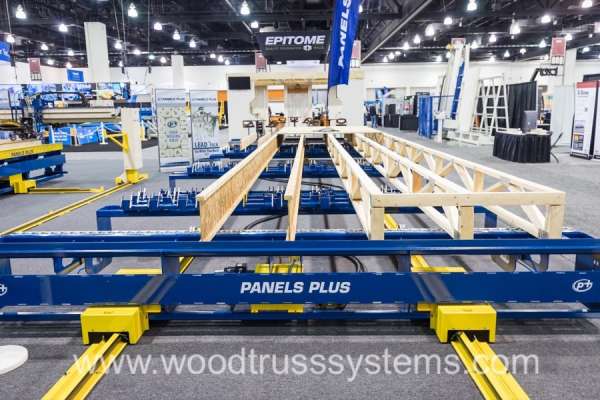

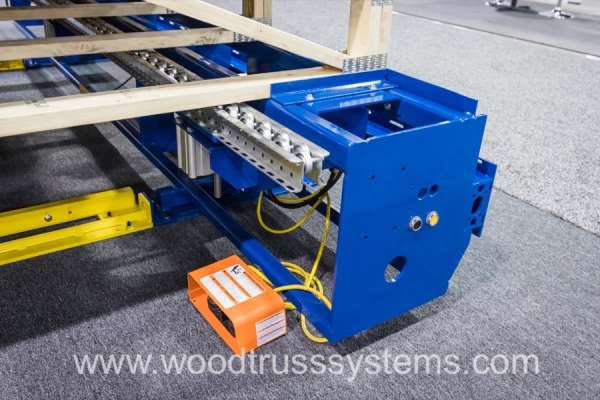

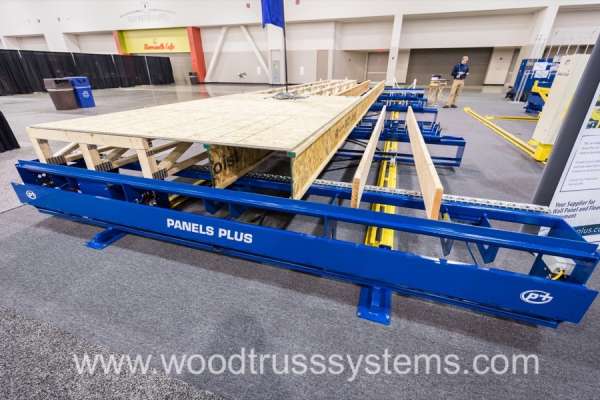

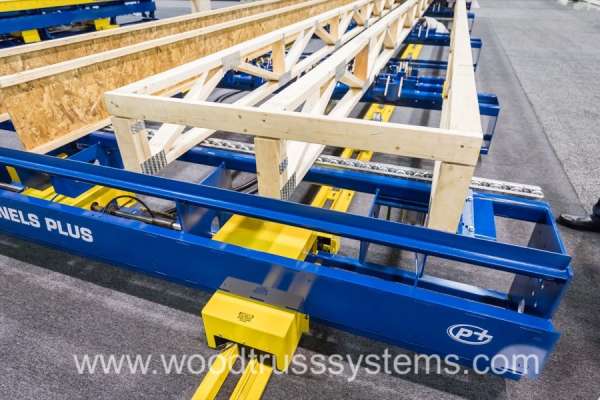

New Panels Plus floor framing machine, supports the structural members creating floor sections from 2″ x 6″ LVL through 2″ x 10″ to 2″ x 12″ dimensional lumber, 20″ deep wood floor trusses or engineered wood / I-joists. Standard footprint of floor panels (cassettes) up to 12′ wide x 45′ long. Table consists of a fixed section and a track-guided, moveable section controlled by either a foot switch or push-buttons.

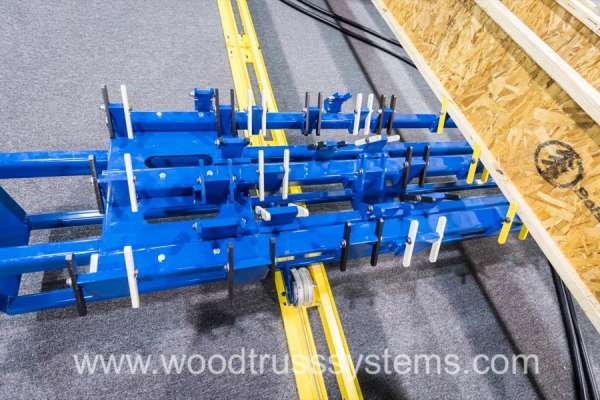

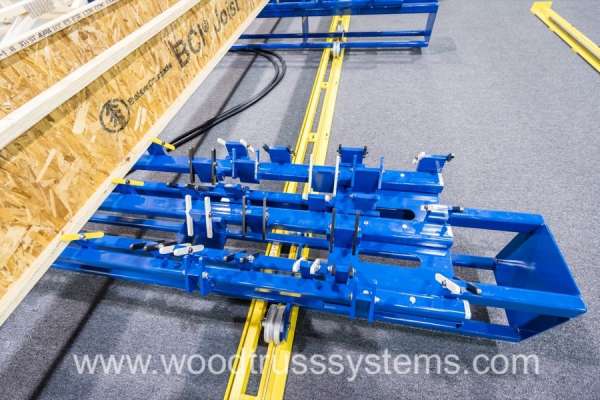

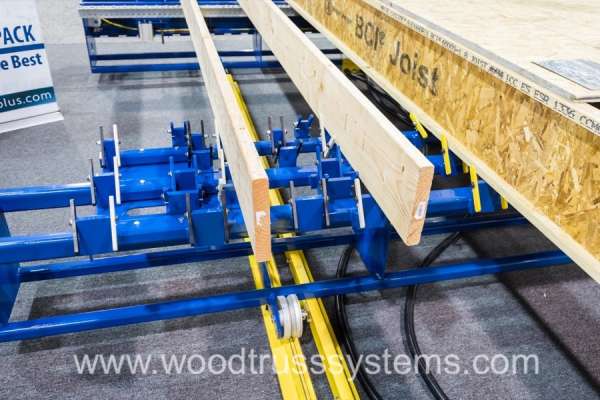

Includes a series of color-coded locator pins at 16″, 19.2 and 24″ on-center spacing and clamping with squaring feature including foot pedal control. Locators flip down, skate wheel ejectors lift panel off of frame after completion. Table height is 24.5″. 120 volt, 1 phase, 15 Amp electrical required. 120 PSI at 10 CFM air required.
