New Panels Plus Wall Panel Support Equipment

Panels Plus peripheral equipment includes stand-along conveyors, panel lifts, hand-held router frames and material carts…

Condition: New
Location: MN

Category: Tag:

Description

Call For Pricing

Panels Plus peripheral equipment includes stand-along conveyors, panel lifts, hand-held router frames and material carts.

Conveyors are stand alone with adjustable legs. Heavy-duty skatewheels are used to manually transport lumber from station to station. Lengths of 10′, 15′ and 20′ are available. Can be placed end-to-end to create longer staging areas between stations.

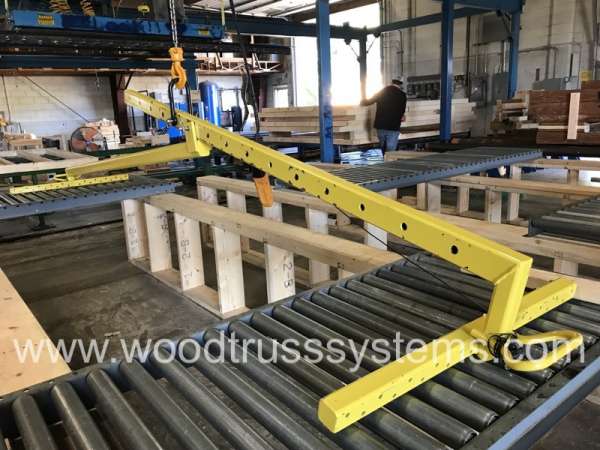

Panel lifts are used to lift completed panels off of the production line and place onto a stack for transport. The lift is adjustable and designed to fit panels from 7′ to 12′-4″ tall. Used in conjunction with a hoist (provided by others).

Panels Plus material carts come in two configurations; flat and tree cart styles. Flat carts are 56″ wide x 84″ long x 22″ high nominal. Material tree carts are 48″ wide x 72″ long x 78″ nominal and feature (3) raised shelves and a base shelf. Four wheels per cart.

Download PDF
