A brand-new day, a whole new way, to drive greater productivity.

Don’t Just Do It, Nail it!

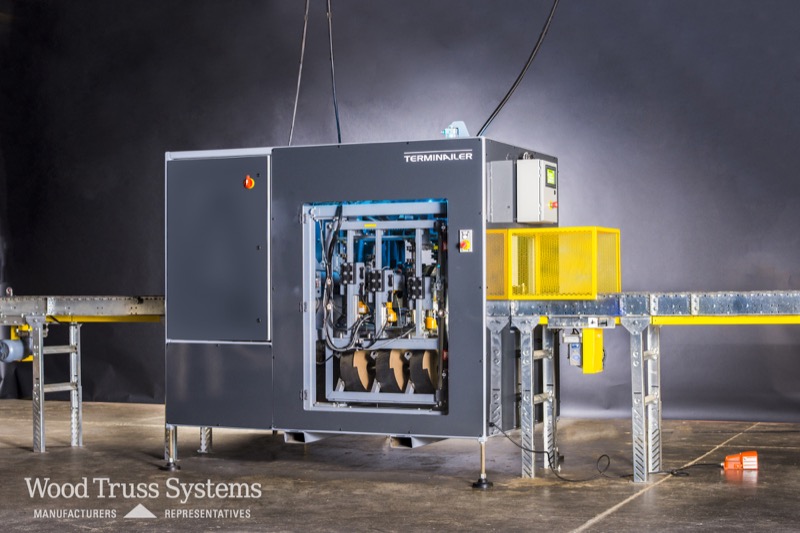

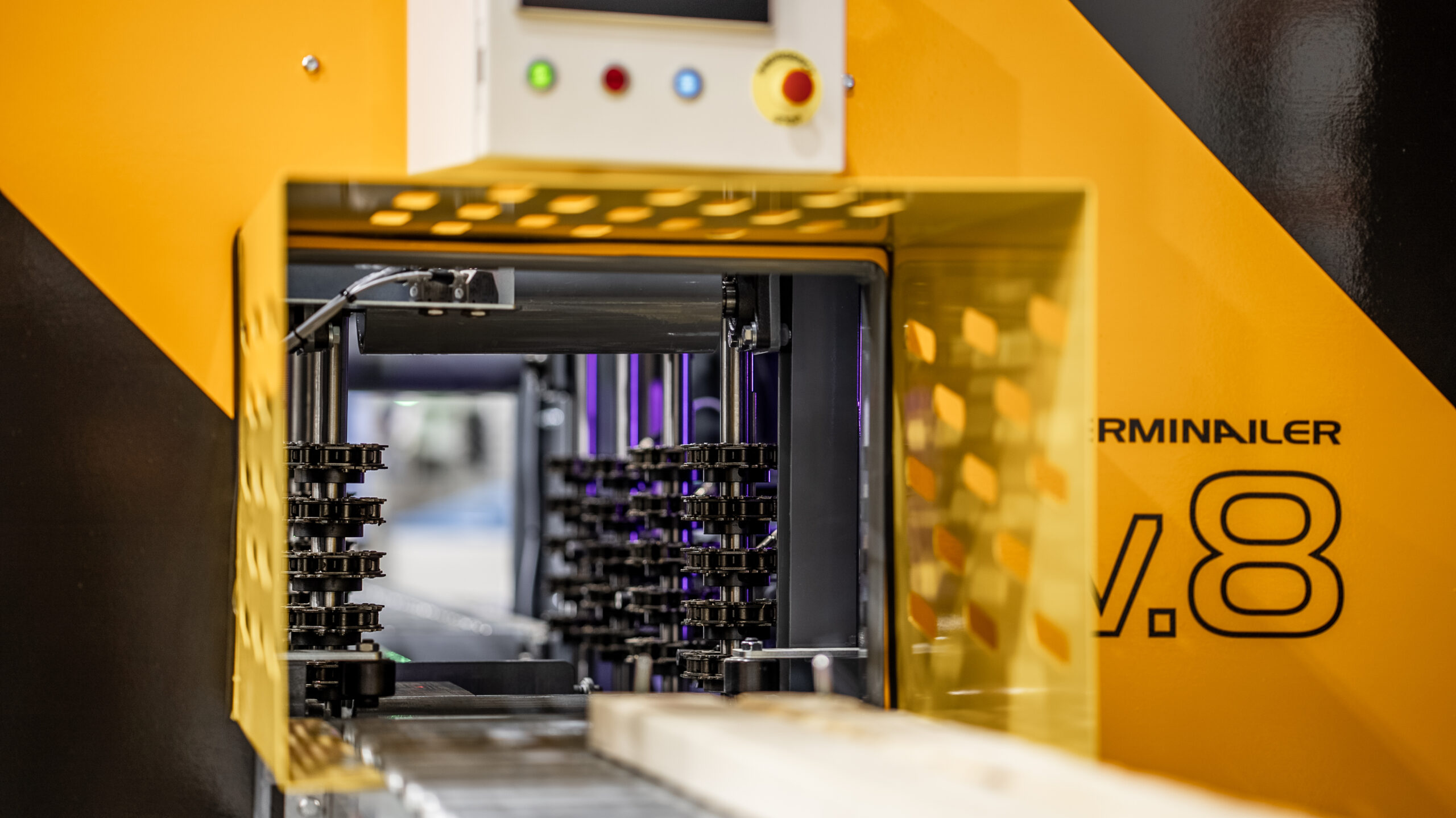

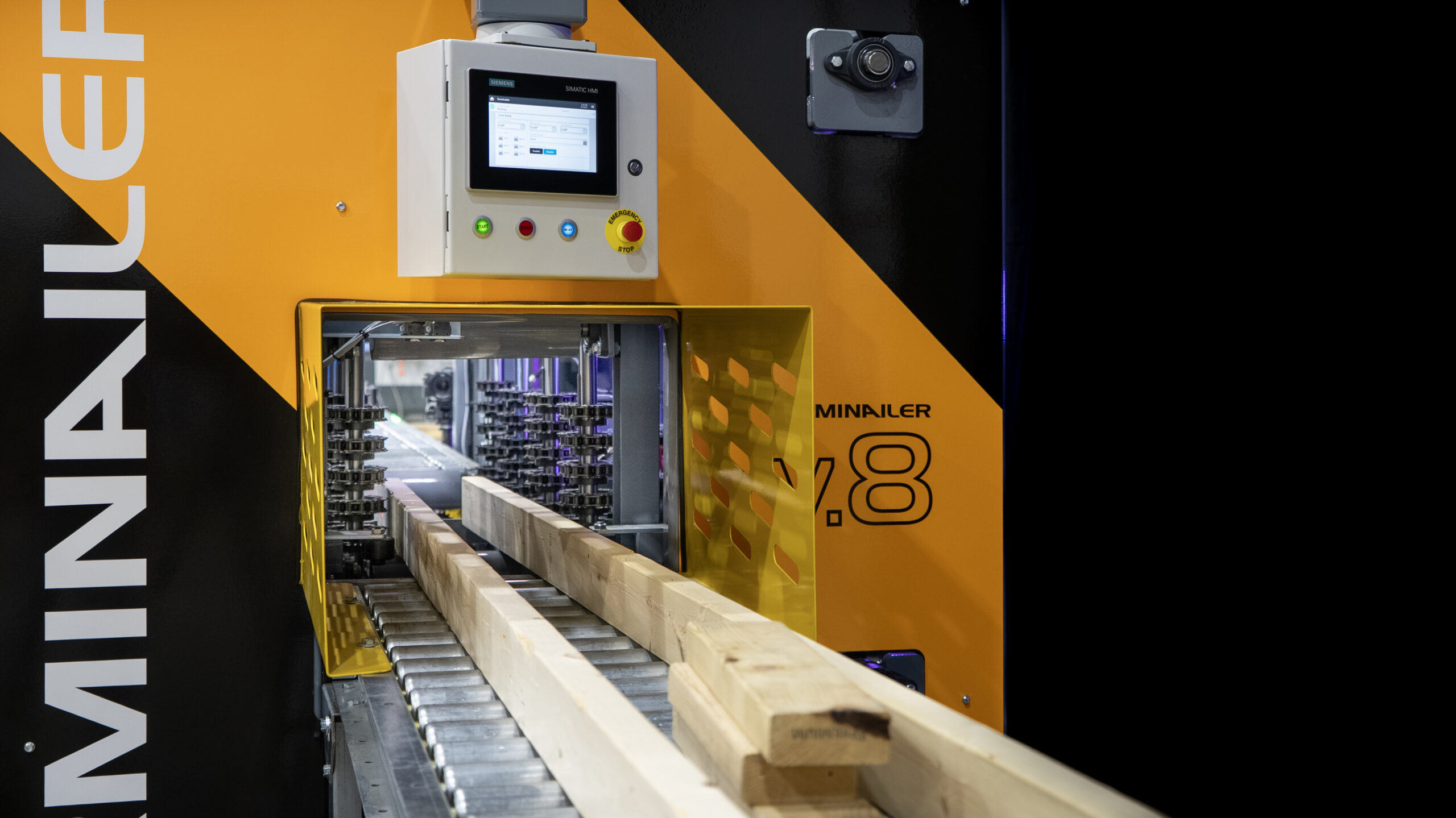

The Terminailer v.8 is the easiest way to build sub-components for wood-frame wall panels. With no external data source this is an “event driven” machine that can build an expanded selection of sub-components in “Just-in-time” or “Batch” mode. Far from a prototype, the recently enhanced V.8 has been in dozens of wall panel facilities for over fifteen years and is built by people with vast experience producing wall panels, who are also skilled in developing machinery. Inspired by years of intensive field experience, ample feedback from numerous customers, and Terminailer’s performance under varying conditions, Terminailer v.8 is ready to drive enhanced profitability for your business.

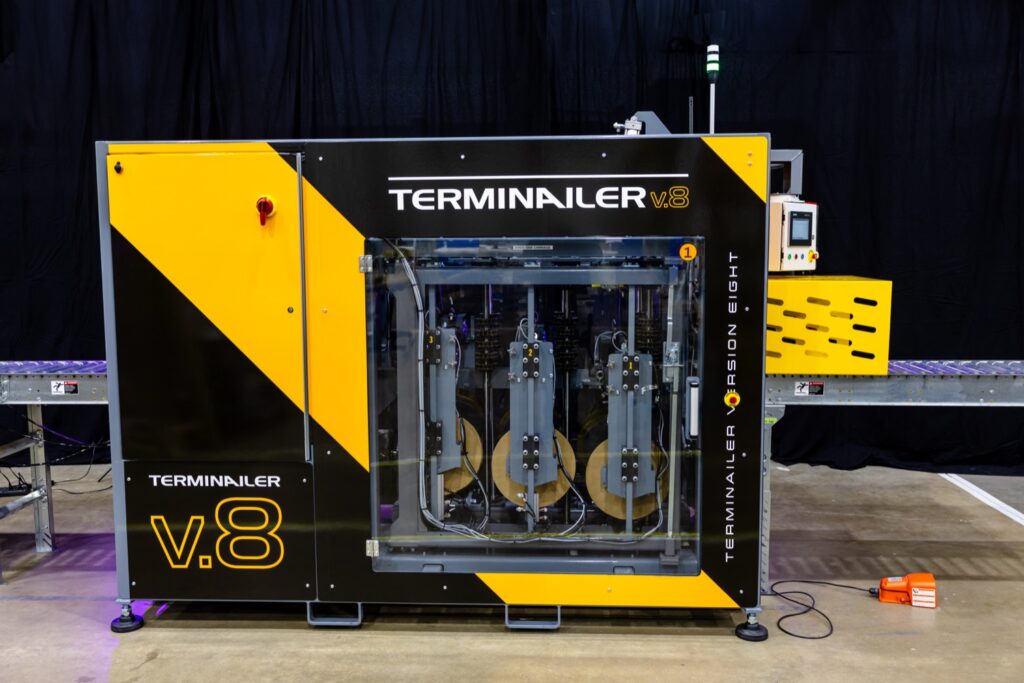

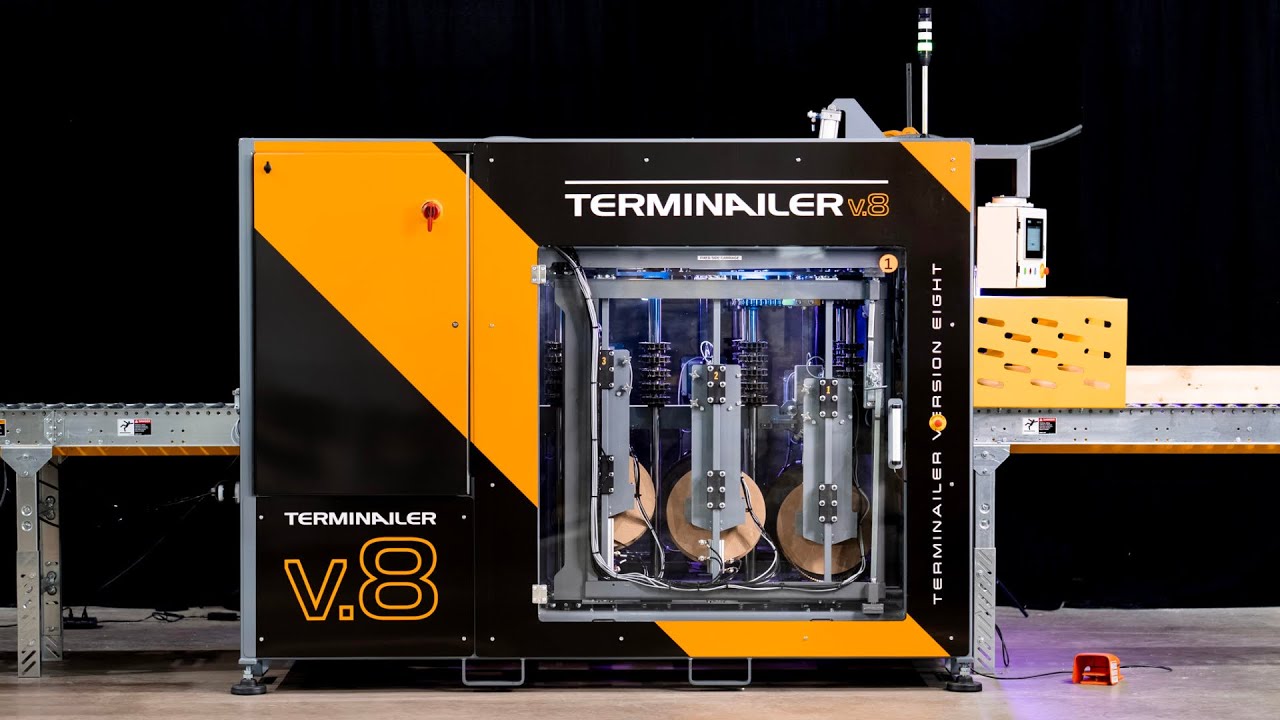

REVOLUTIONARY – THE TERMINAILER v.8

Terminailer v.8 revolutionizes wall panel and sub-component assembly by slashing labor costs, eliminating safety risks, and ensuring code-compliant precision-all while handling high- volume projects faster than manual crews. With one operator replacing four workers, it nails components 30-70% faster, straightens warped lumber to cut material waste, and easily builds complex multi-ply assemblies (up to 6 plies). Designed for wall panel producers (off site or onsite) who refuse to compromise on speed, safety, or quality, V.8 delivers rapid ROI and it is built tough for non-stop production.

ALL AT ONCE

With only one operator setting the pace, the Terminailer semi-automated nailing system quickly and accurately drives 30-70% of the framing nails in your wall panel jobs, whether they are for batch or just-in-time production. All with. no complicated training, software or set-up time required, even when switching configurations.

Terminailer has been in development for over ten years by people who build walls and know machinery; it was built to eliminate bottlenecks and to drive production by a demanding wall panel producer. This machine is assembled to exacting standards: it is professionally installed, well-supported, and is easily maintained by your shop’s personnel.

CONSIDER ALL THE WAYS TERMINAILER CAN HELP PUT YOUR PRODUCTIVITY GOALS TOGETHER

Years in development by people who know the business and wall-panel construction, thoroughly field-tested, and ready to drive maximum productivity for you.

(1 operator vs 4 workers) (1 can out produce 4 manual assemblers)

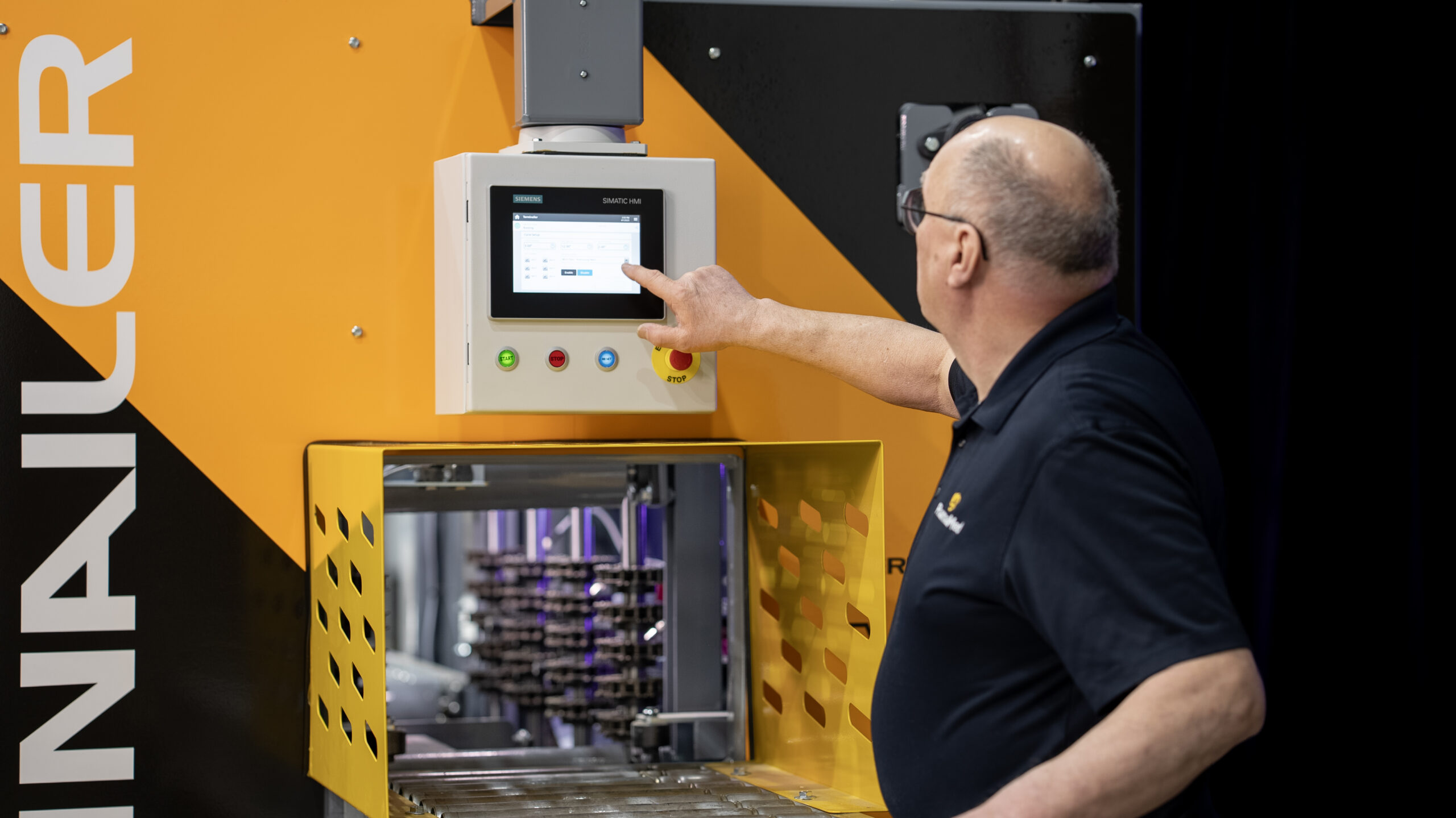

Very easy to train: can teach anyone who builds walls to run it in minutes
Small overall machine footprint saves valuable floor space
With factory installation and training, the Terminailer sets up in just hours
One operator drive 30% to 70% of all framing nails in a given wall segment.
Speeds downstream assembly of rough openings and completed wall segments.

Sets the pace for overall production: One assembler creates the right parts, in the right sequence, for just in time delivery to your production lines.

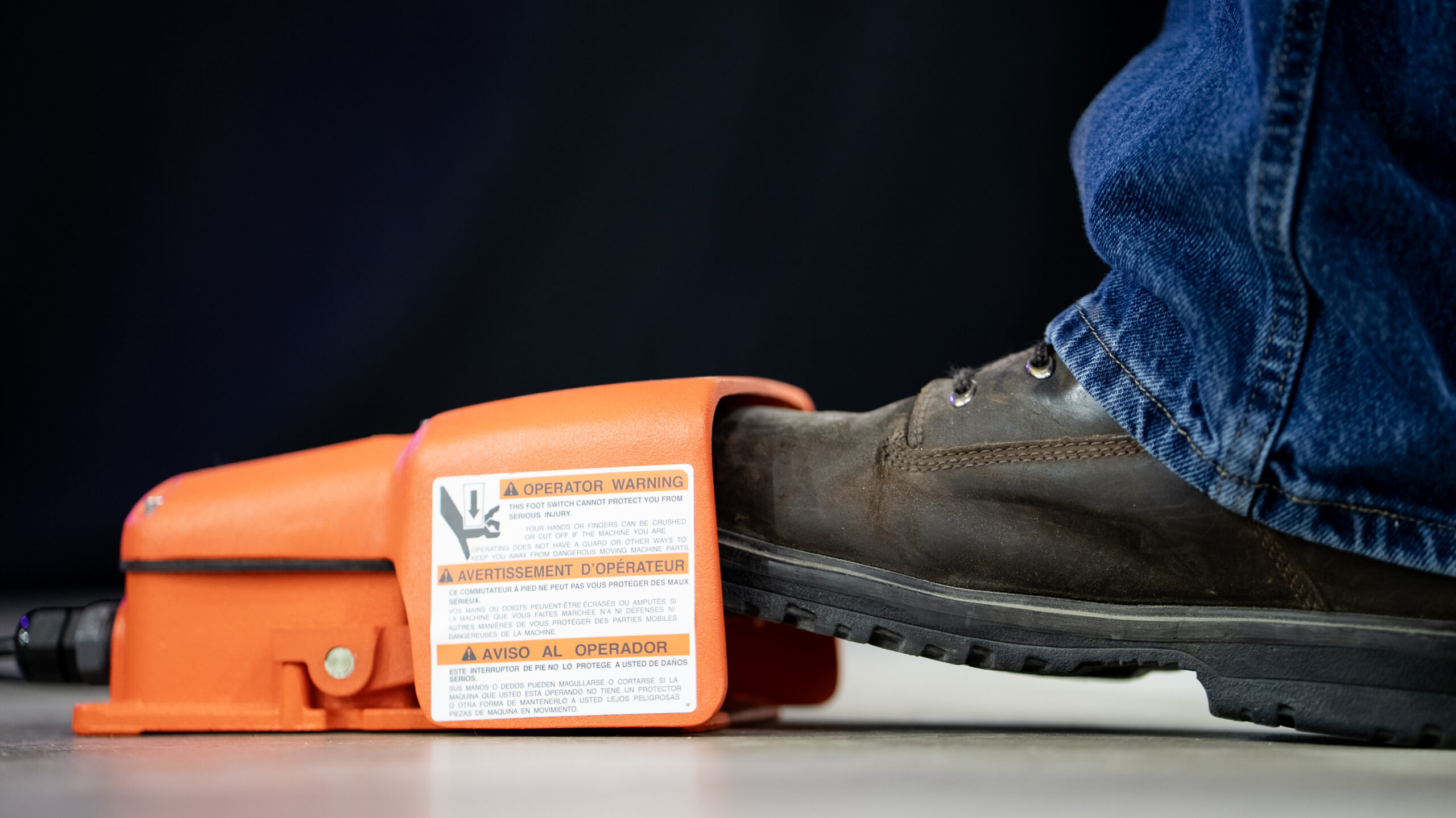

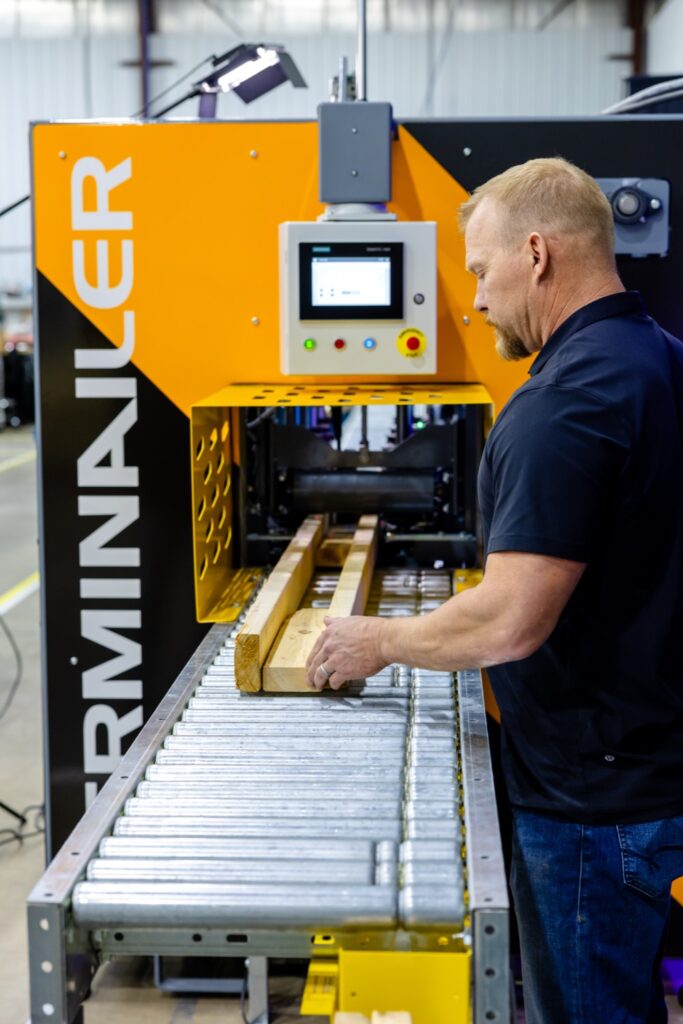

Zero set-up time: insert the material, push the foot feed button, and grab the material for the next profile

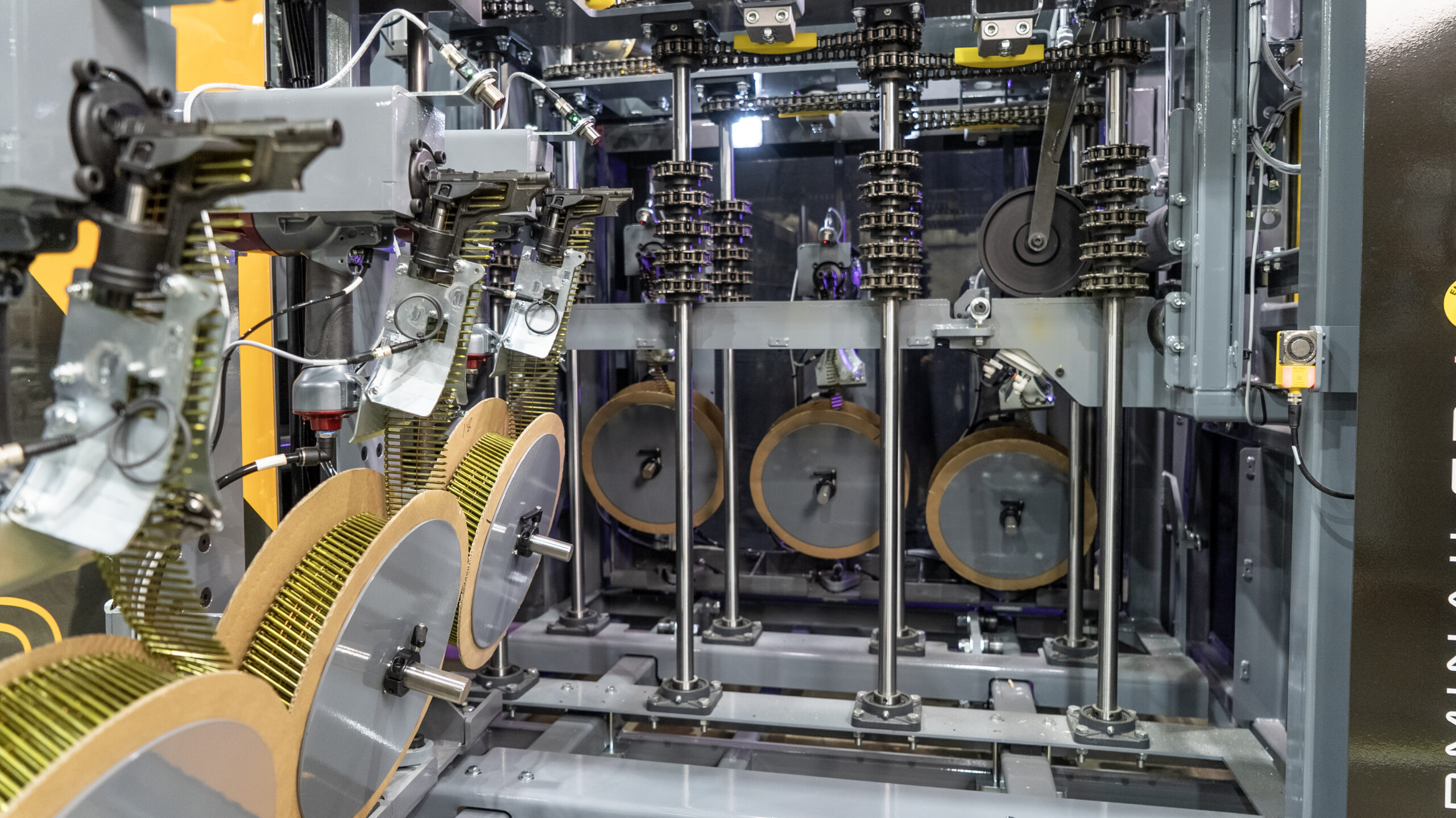

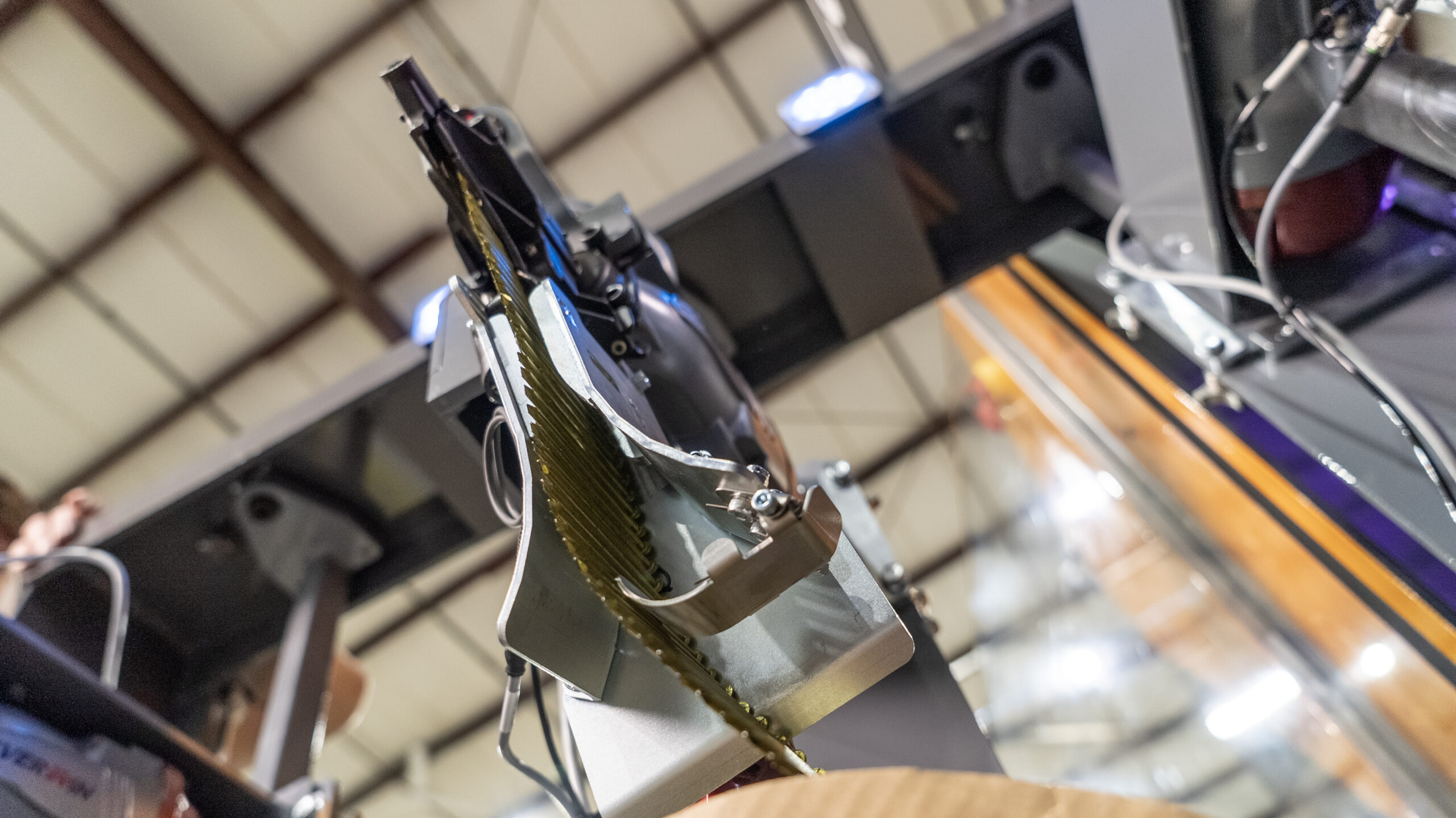

Holds 2,500 nails per coil for each of six nail-guns, for a total of 15,000 nails

Eliminates nailing injuries associated with sub-component assembly
No more hands being used to hold lumber in place while nailing
Automatically nails millions of nails with no hand held guns.

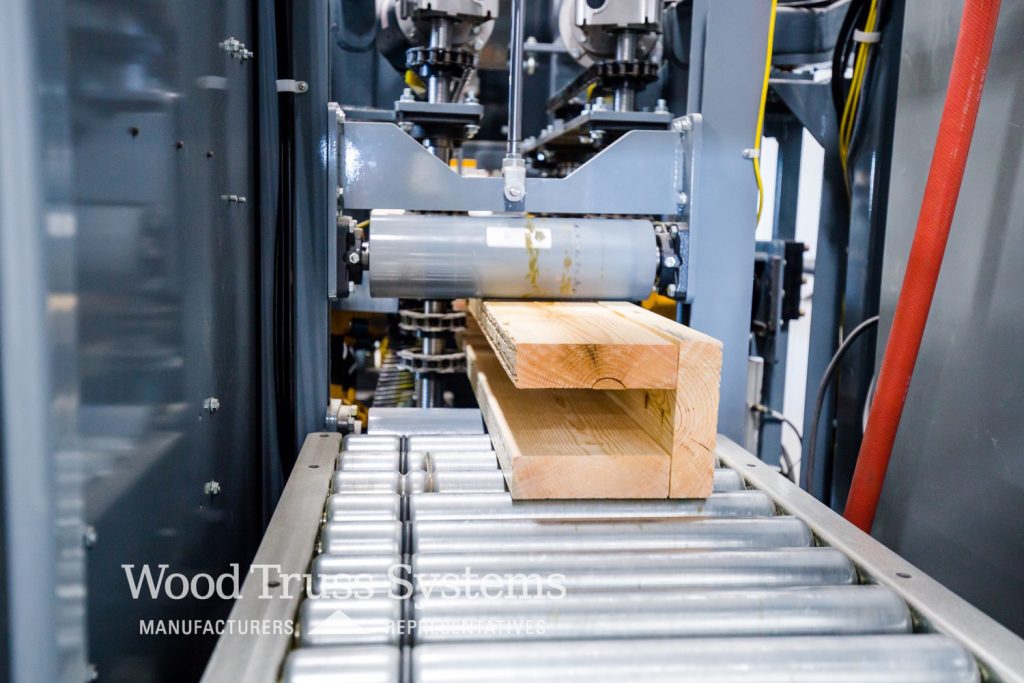

Straightens most crooked lumber, reduces the need to cull lumber
Builds up to 8-ply assemblies easily when selecting “pull-back” mode
Virtually perfect nail spacing every time ensures code compliance
Nails can be offset from one side to the other on multi-plies per specific engineering requirements: code-compliant product every time

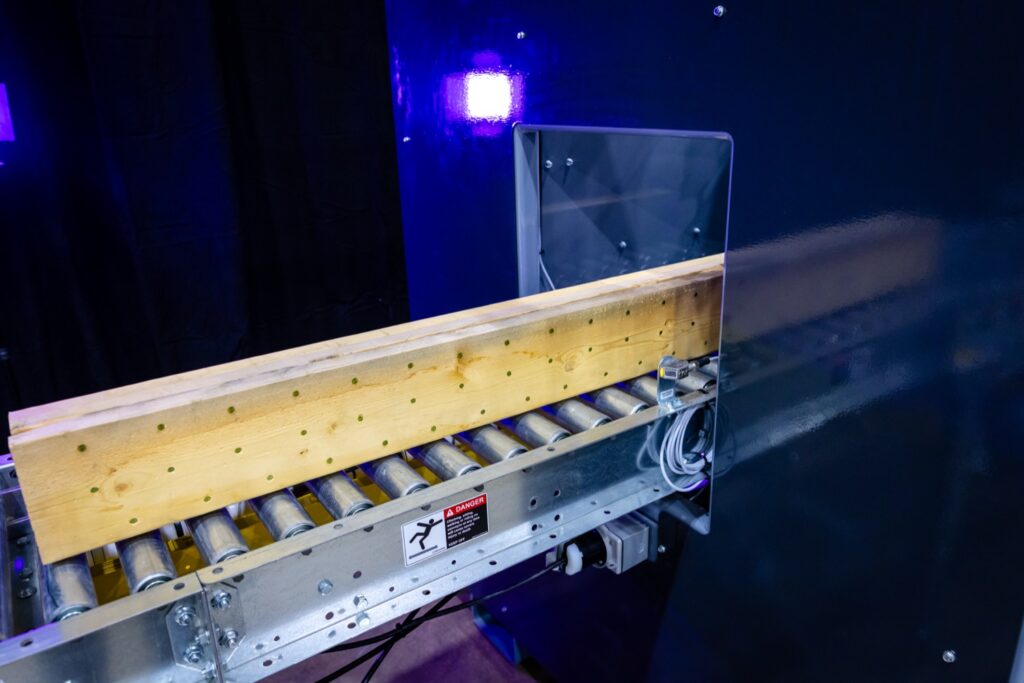

Place up to 5 rows of nails in lumber of 2×10 to 2×12 for assembled headers.

Tracks daily production by operator: linear feet of material, cycles, and nails driven
Greatly reduces defect-related back charges
Reduces sub-component nail usage by up to 10%

Pharmaceutical-grade engineering, industrial grade durability for 24/7 use.
Event-driven: NO software update, does not require any outside software to tell it what to do and where to nail
Terminailer comes with a full one-year OEM warranty
Complete documentation including an operating manual that covers operations, maintenance, troubleshooting, and system diagnostics

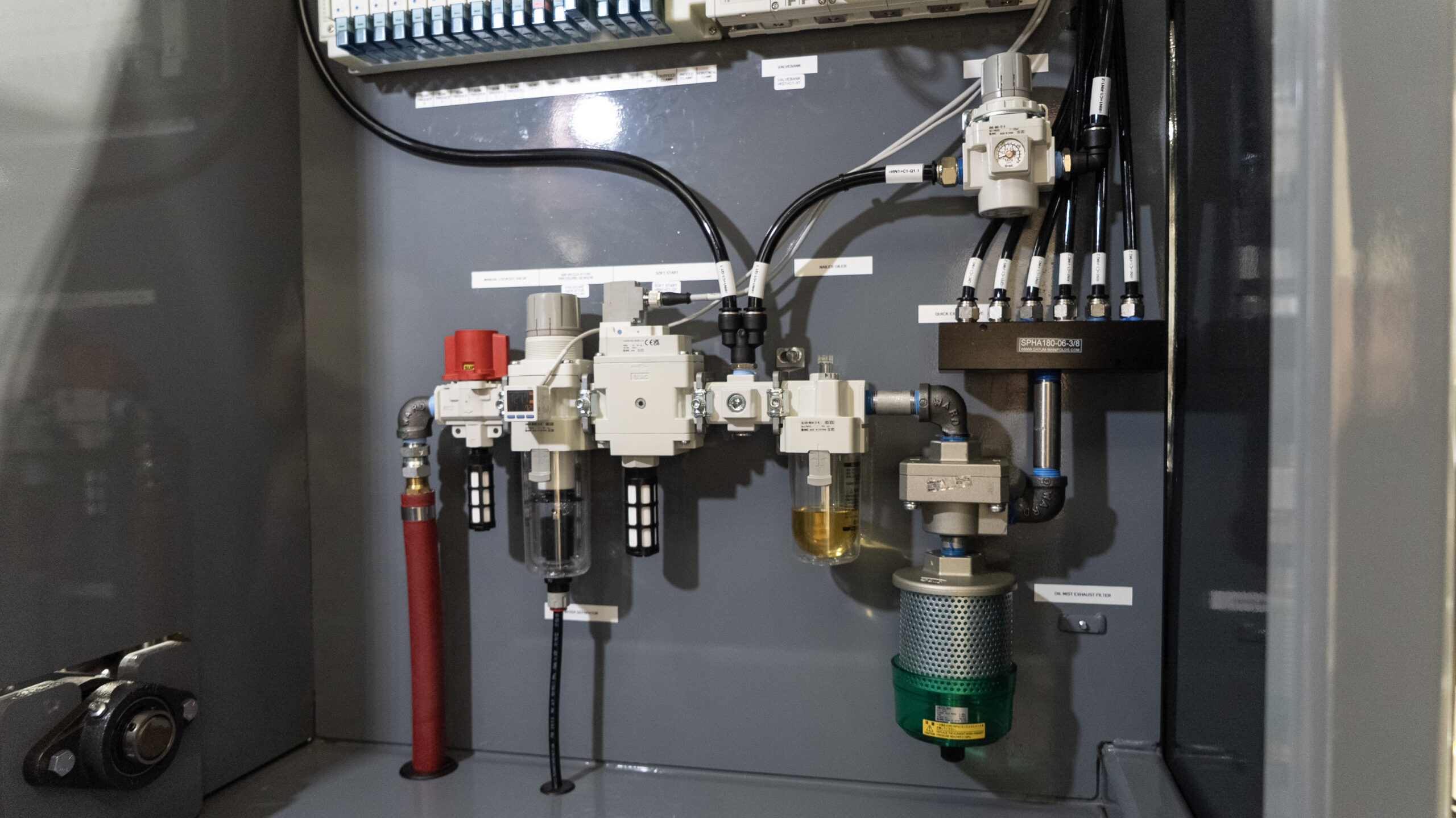

208v / 3Ph / 60 Hz / 21 FLA, 120 PSI dry air supply required
