New Panels Plus Floor Cassette Framing Station

Price based on configuration
NEW
MN

New Panels Plus floor framing machine, supports the structural members creating floor sections from 2″ x 6″ LVL through 2″ x 10″ to 2″ x 12″ dimensional lumber, 20″ deep wood floor trusses or engineered wood / I-joists…

Condition: New
Location: MN

Call for Pricing

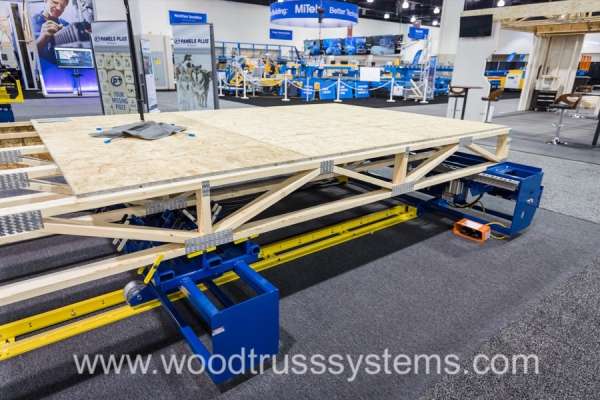

New Panels Plus floor framing machine, supports the structural members creating floor sections from 2″ x 6″ LVL through 2″ x 10″ to 2″ x 12″ dimensional lumber, 20″ deep wood floor trusses or engineered wood / I-joists. Standard footprint of floor panels (cassettes) up to 12′ wide x 45′ long. Table consists of a fixed section and a track-guided, moveable section controlled by either a foot switch or push-buttons.

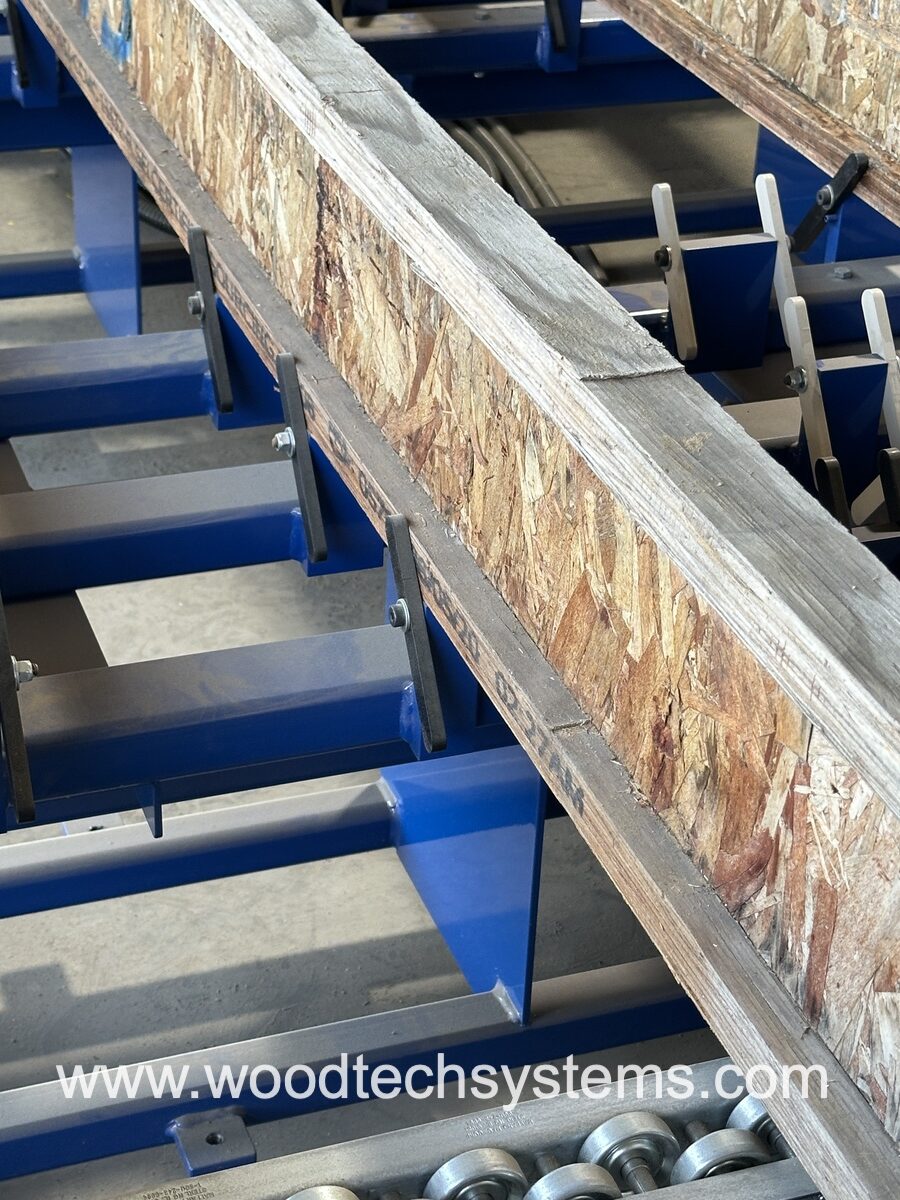

Includes a series of color-coded locator pins at 16″, 19.2 and 24″ on-center spacing and clamping with squaring feature including foot pedal control. The locators individually flip down if a joist comes out on top of them. After the floor is complete and unclamped, the floor section can be raised up on skate-wheel conveyors and rolled out or lifted off the table using an overhead crane. Table height is 24.5″, OAL 45.5 ft, OAW 14.5 ft. 120 volt, 1 phase, 15 Amp electrical required. 90 to 120 PSIG at 15 CFM air required.
