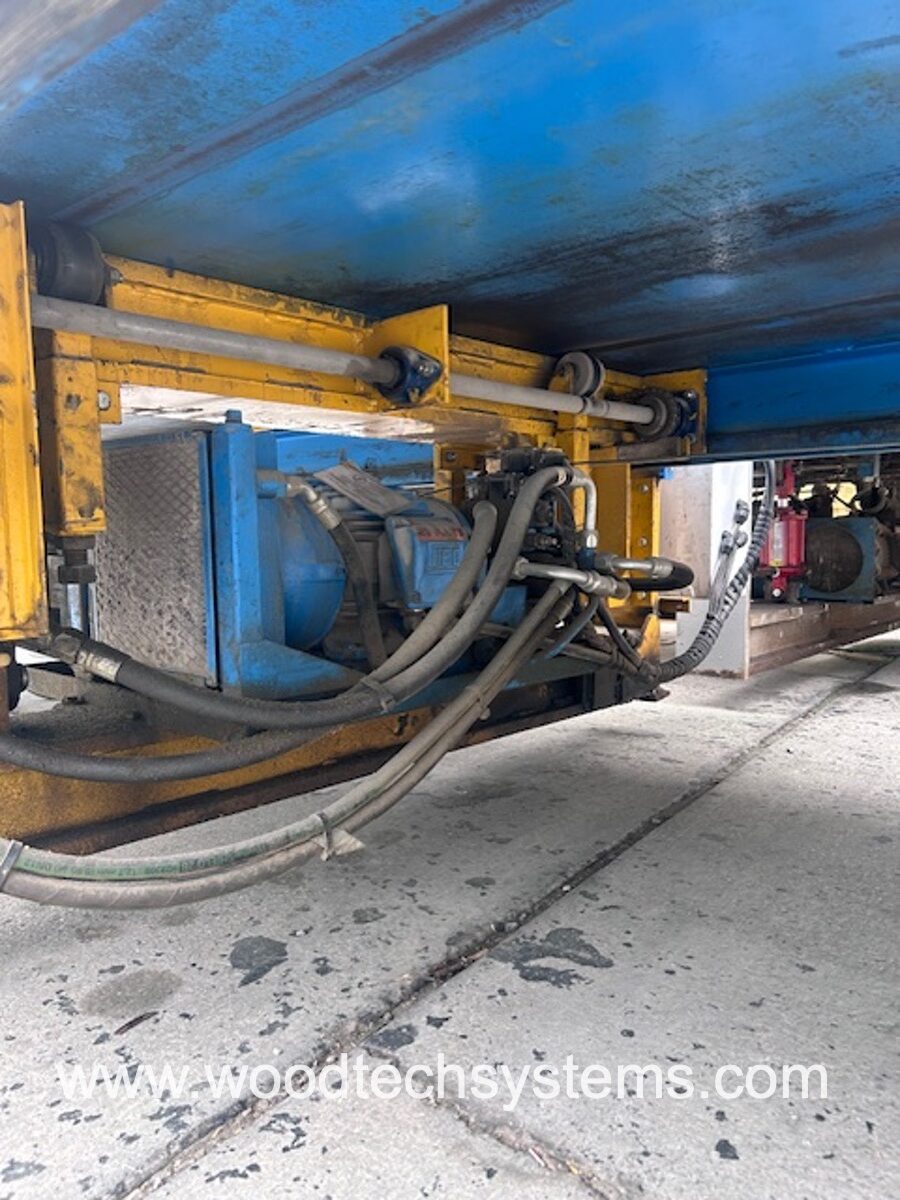

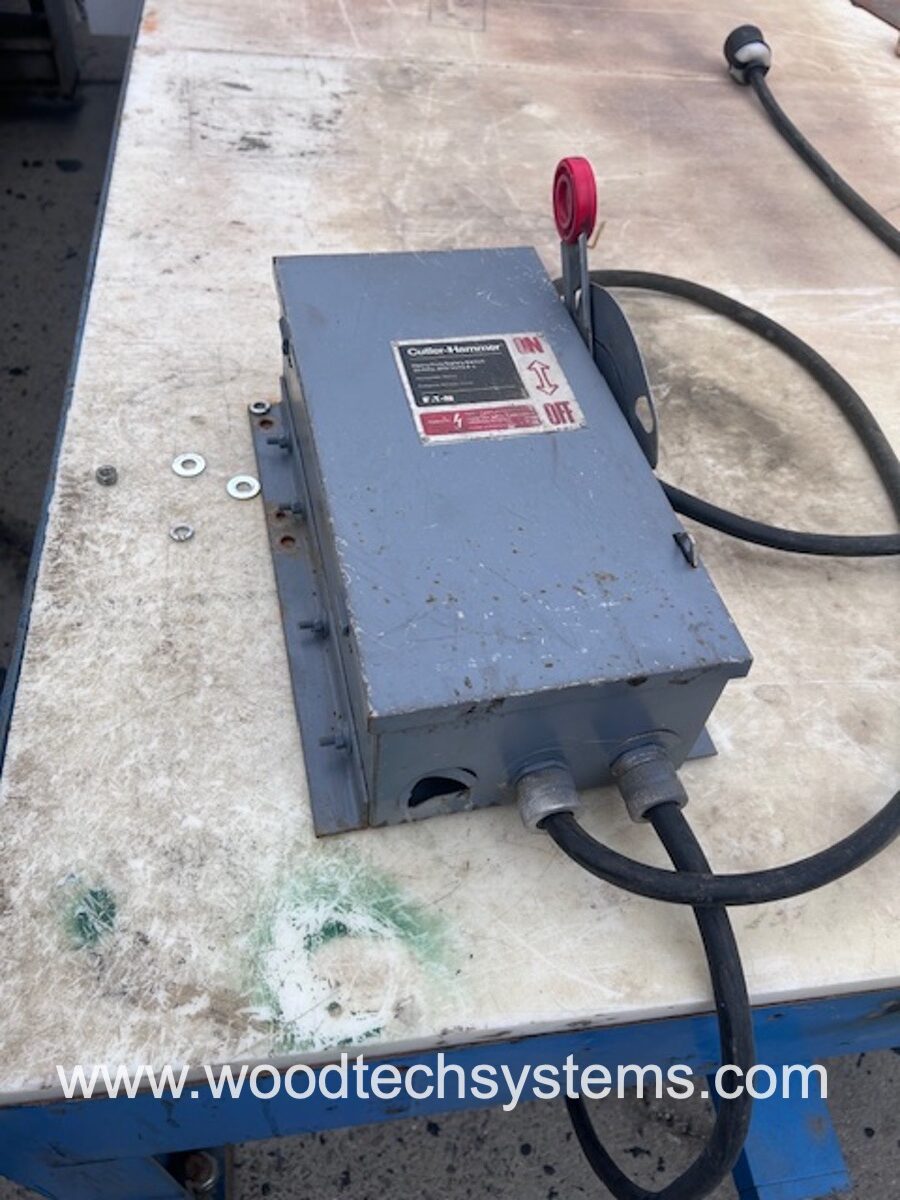

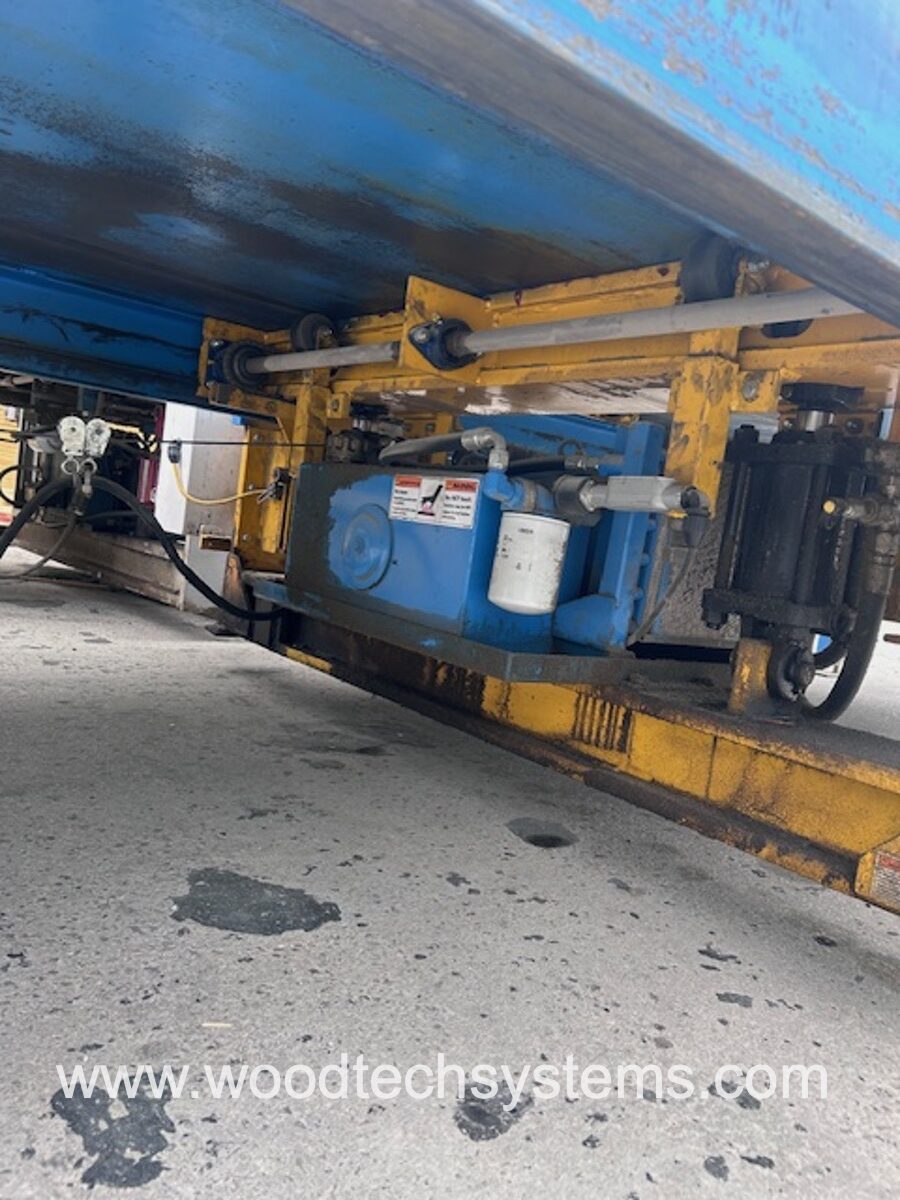

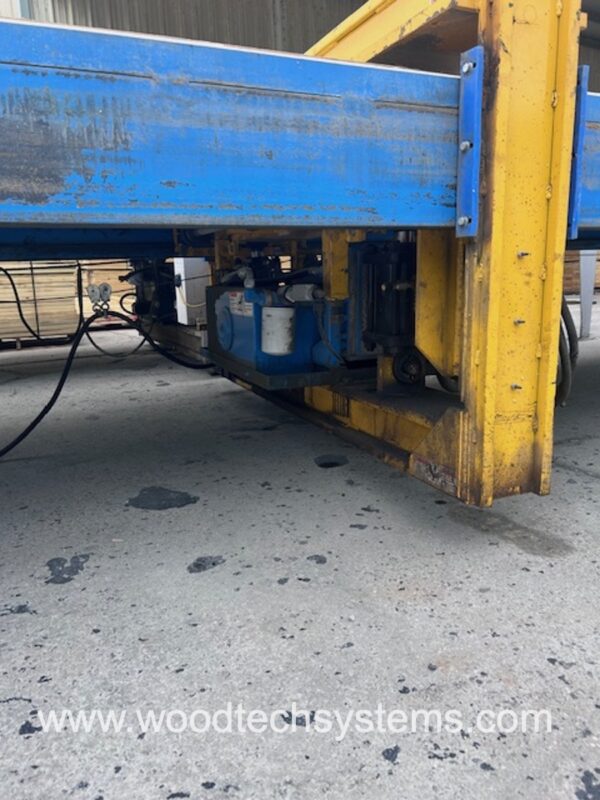

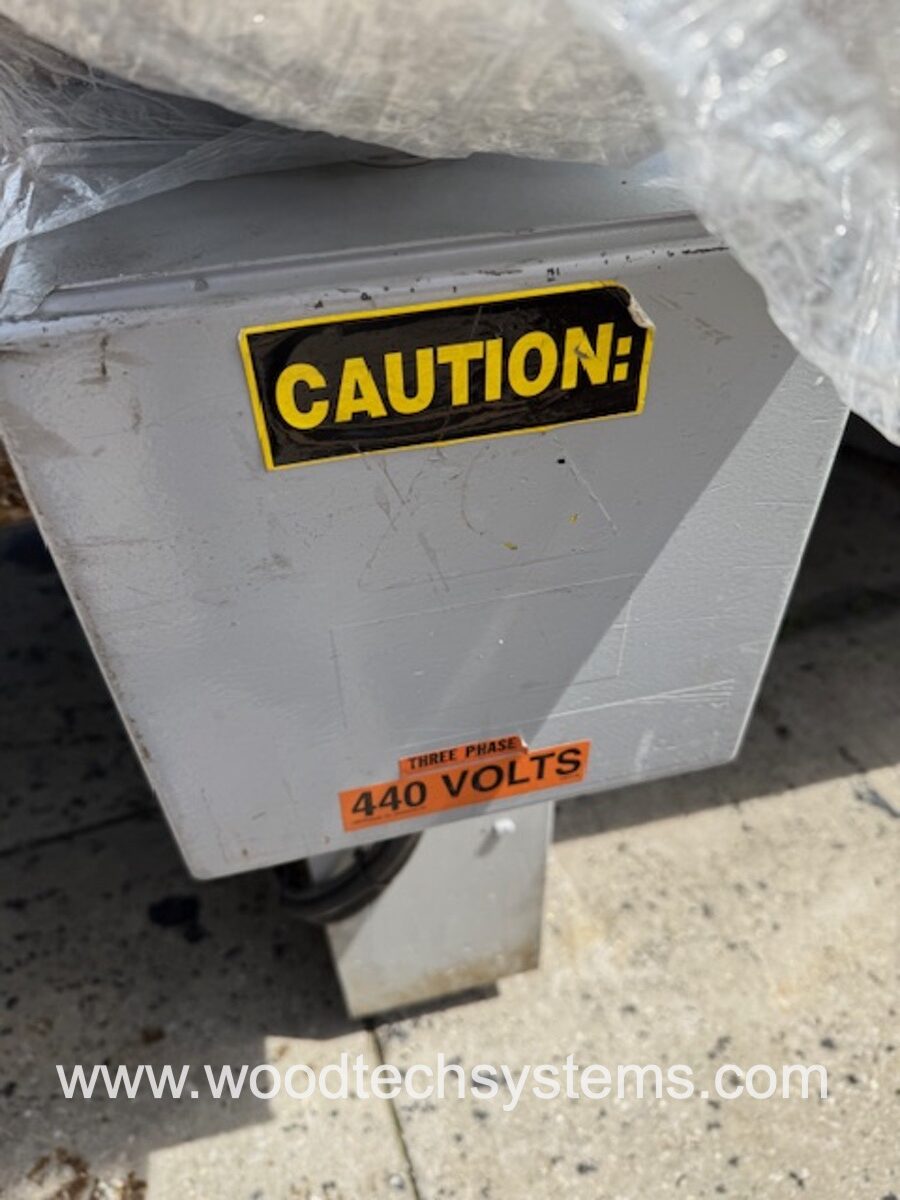

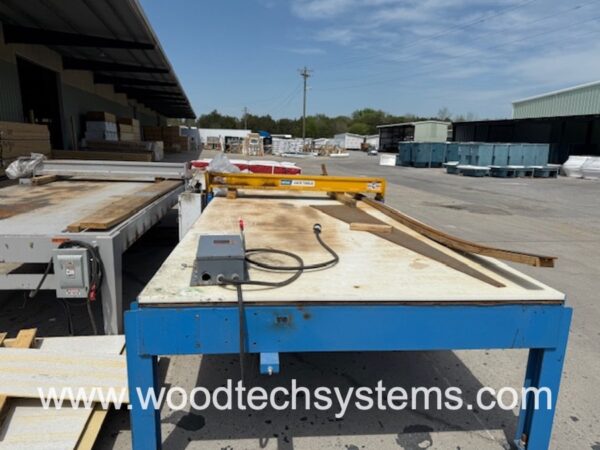

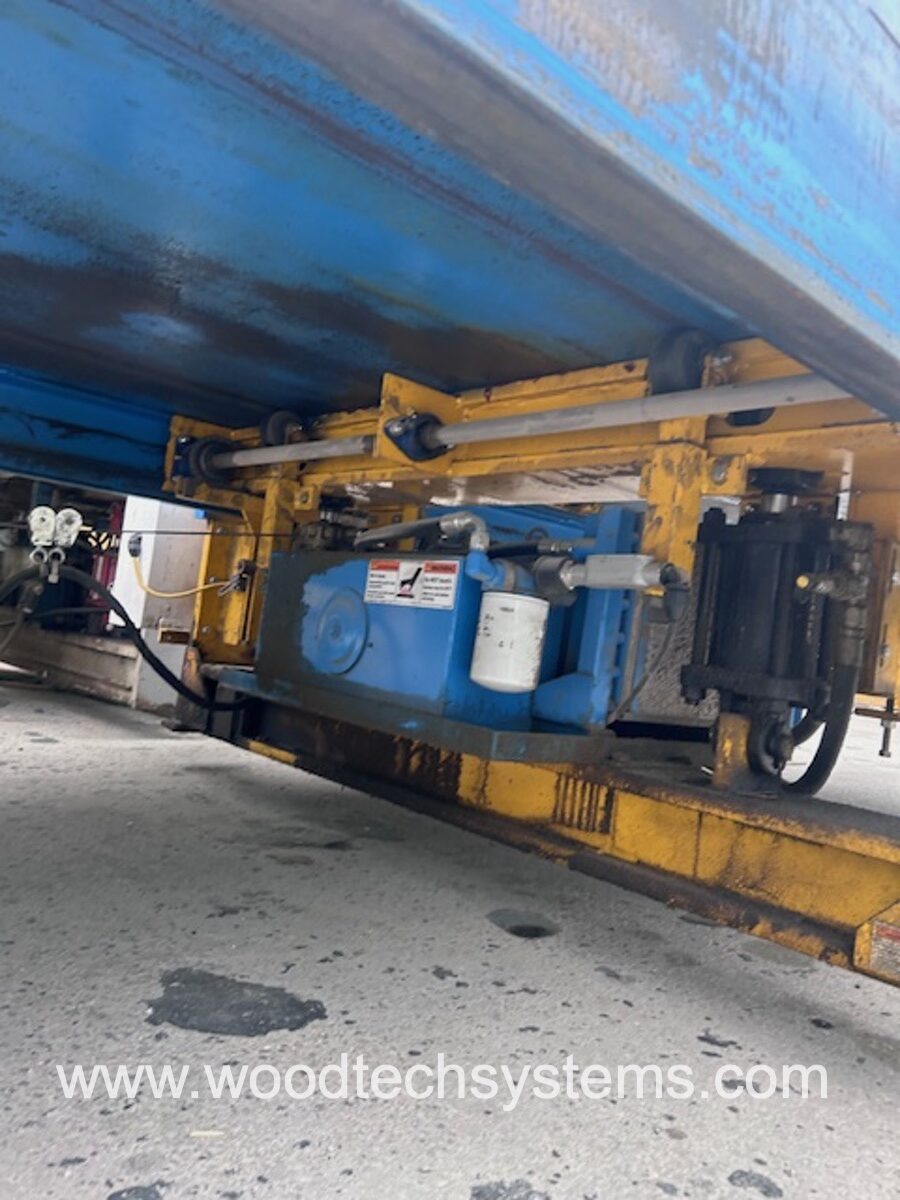

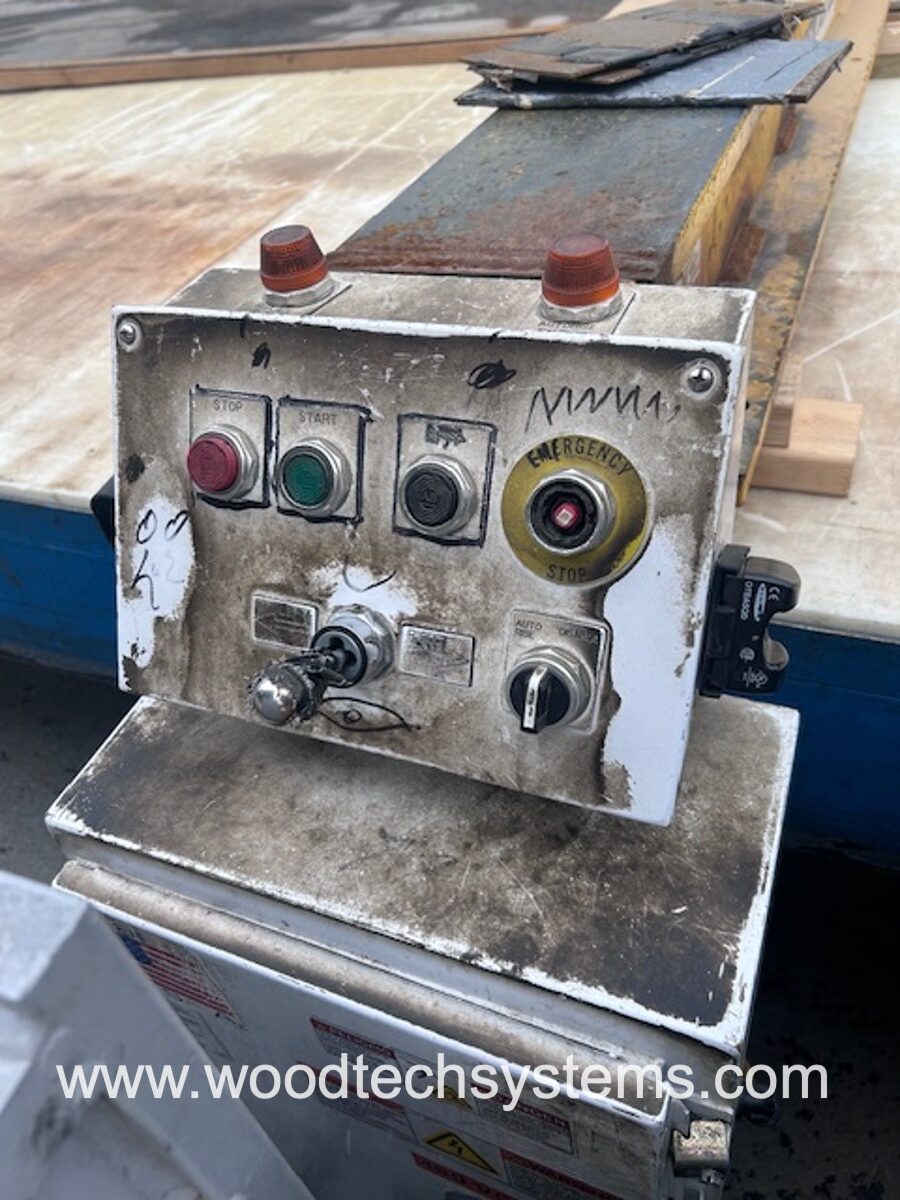

6’x20’ truss assembly table features an all-steel table frame, with dense plastic production surface, over wood underlayment for quick jigging, joy-stick control for travel, dual push button up/down controls for safer cycling, 7.5 HP motor and twin hydraulic cylinders. Maximum truss height is 5′-6″, dimension of pressing platen is 12″ x 74″ with 1″ steel platen thickness. 30-Ton pressing capacity, lumber capacity up to 4.5″ thick and less than 12″ wide. (Gray machine in photo not for sale). 440 volt, 3 phase, 30 Amp electrical required.

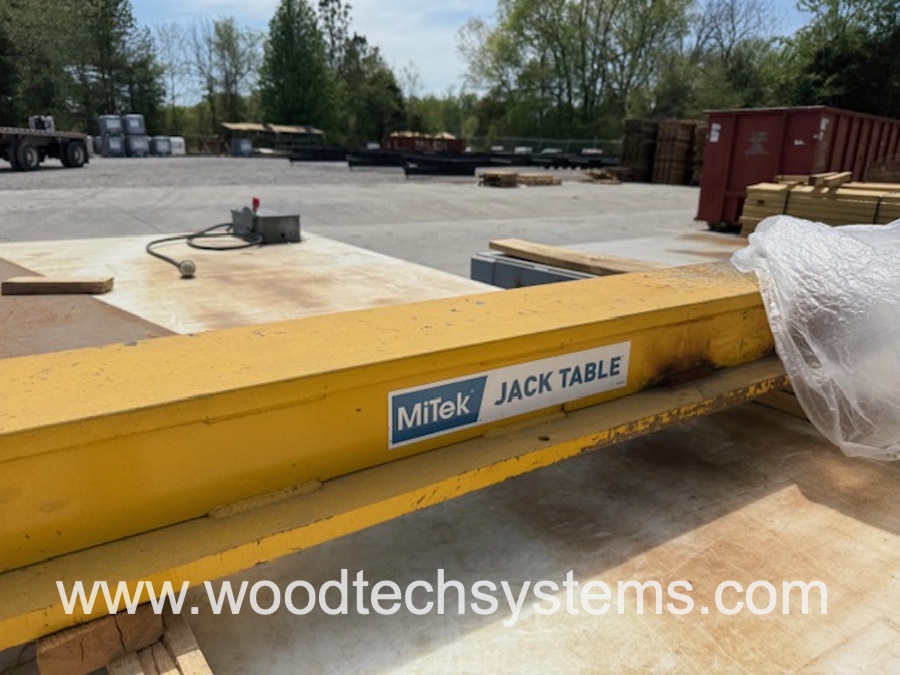

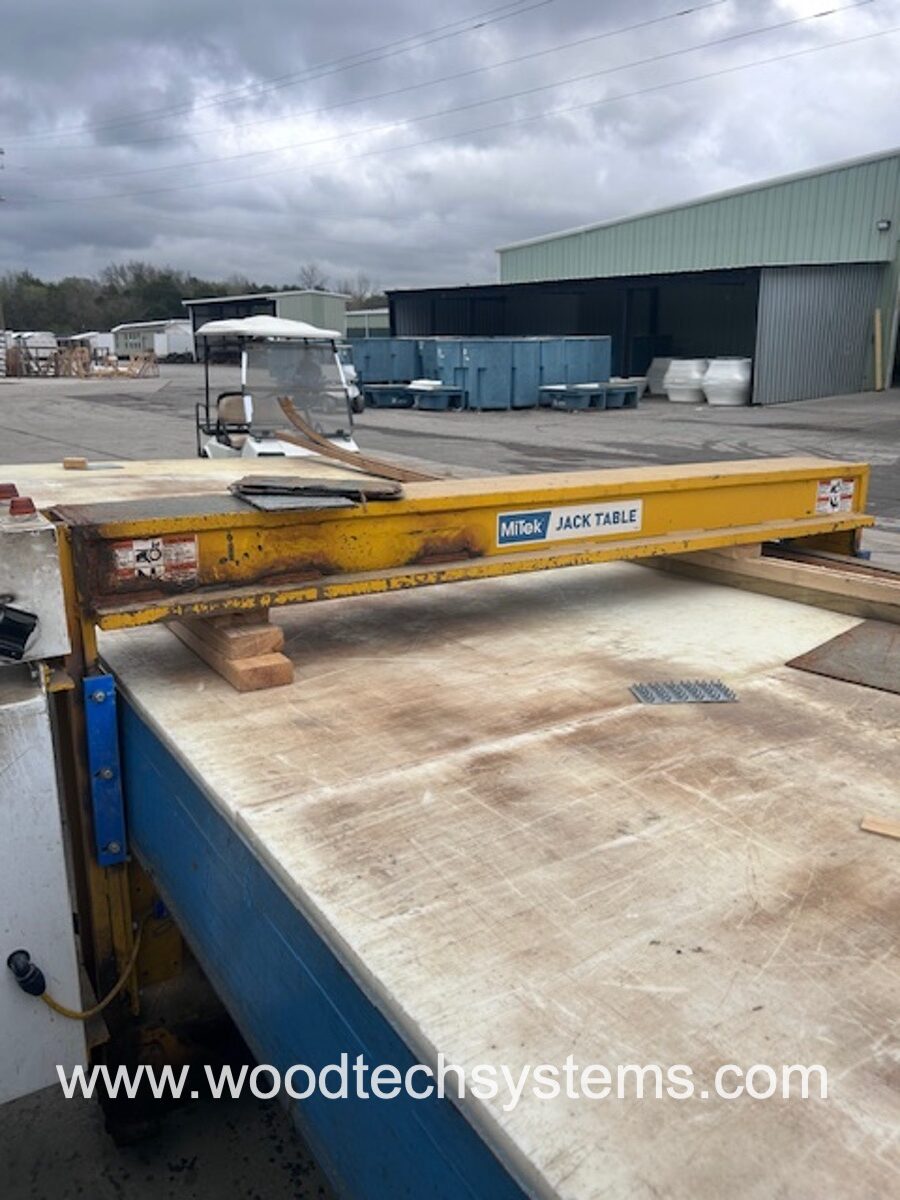

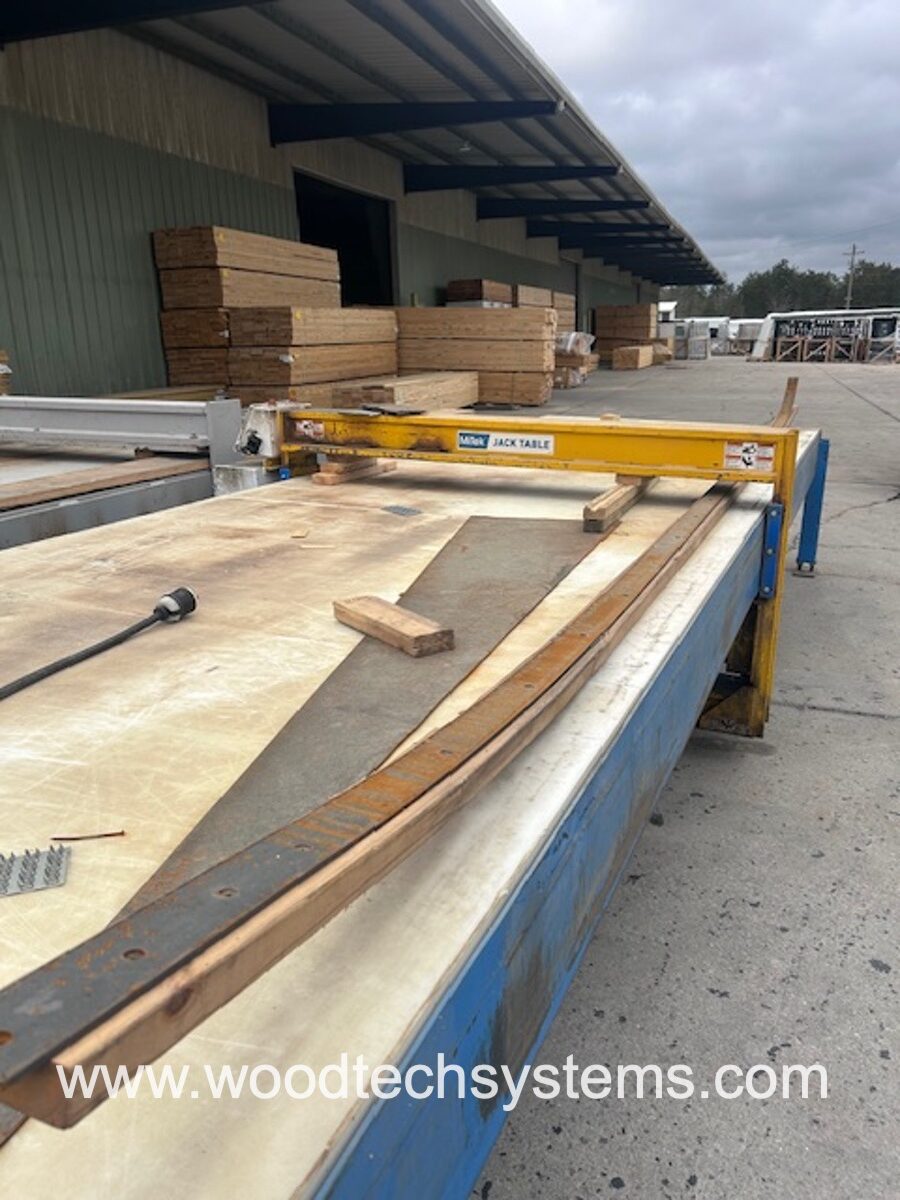

2018 MiTek Jack Table Bridge Press
$21,997.00
Good
AL
